Electronic Controls & Power Saving Solution

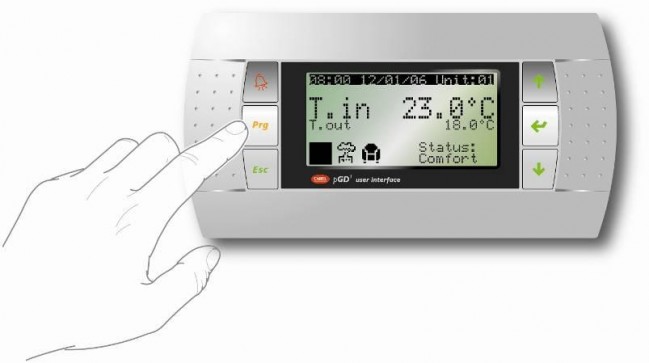

We provide electronic automation & controls solution for HVAC system ie. Fan, motor, cooling coils, heater, humidifier, filters to optimize energy consumption in operation. In general if you install electronic controls in system the 50% power can be saved. Payback time of our installations is as lower as 6 months to 1 year. Normally people don’t opt for installation of electronic control because of heavy investment in actuators, sensors, controller, display and major modification in system like layout but SM Airtech brought a low cost technology to install in existing system without changing layout.
Volume Flow Capacity q1 / q2 = (n1 / n2) Head or Pressure dp1 / dp2 = (n1 / n2)2 Power P1 / P2 = (n1 / n2)3 If the speed of a fan is increased with 10%- The volume flow is increased with 10%
- The head is increased with 21%
- The power is increased with 33 %
- If the volume flow capacity of an existing system is increased with 10% - the power supply increases with 33% and the electrical motor and the power supply may need an upgrade
High-Efficiency Upgrades
Most HVAC systems consume more than half of total energy consumption. By switching over to an energy-efficient system, facility management can cut their monthly energy costs by up to 1/3. Other Solutions
To serve our clients in the best possible manner, we also undertake the installation of all parts of HVAC like AHU, heat exchanger coils, HVAC Controls, Humidifier with complete assembly. Our range of HVAC Equipment is highly acclaimed for its following features:
- High durability and reliability
- Available in varied specifications
- Consists of filter racks or chambers, sound attenuators and dampers
- Based on latest technologies
- Superb performance
- Highly efficient
- Easy maintenance
- Saves power cost .
