Air Purification System IAQ Units

Home / Products/ Air Purification System IAQ Units

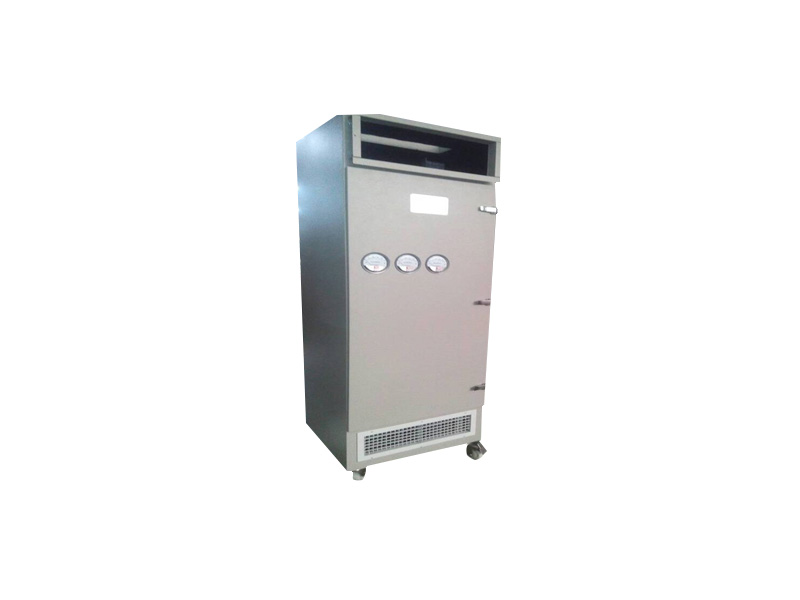

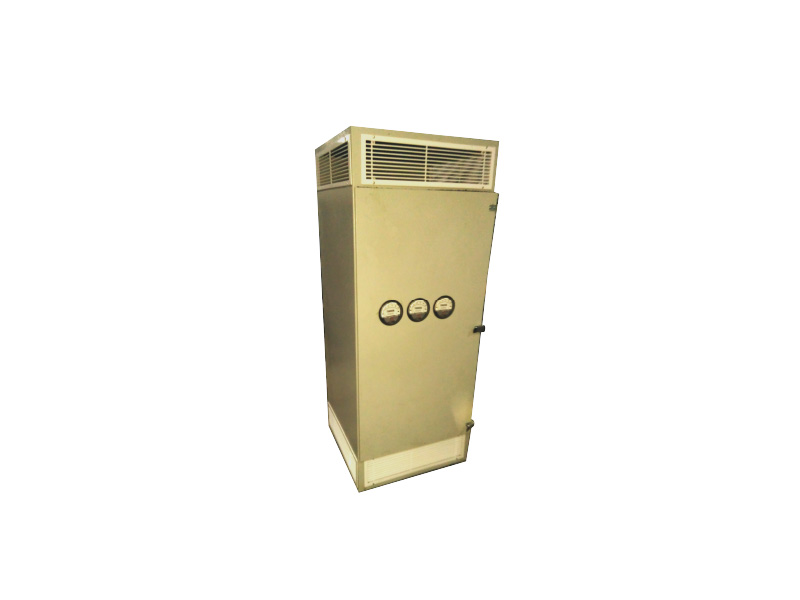

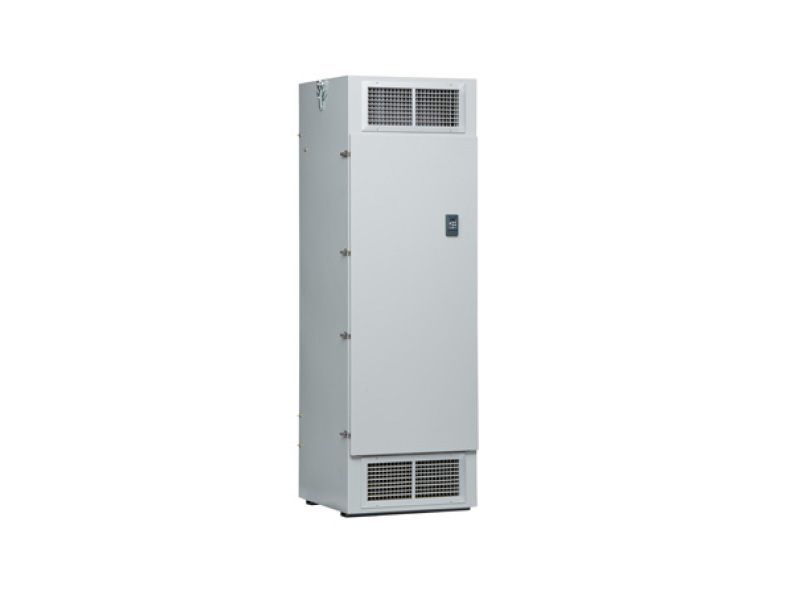

Air Purification System IAQ Units

Our Air Purification systems are the MOST COMPLETE line of certified HEPA air filtration and Carbon adsorption systems on the market today. Our line of HEPA air purifiers and air filtration systems are designed to be used in a wide variety of applications including attaching the systems to any size heating/cooling system for central HEPA indoor air filtration and in stand-alone applications where high volume HEPA filtration is required. Most of us spend up to 90% of their time indoors and many spend most of their working hours in an office environment. Studies conducted by many Environmental Protection Agencies and others show that indoor environments sometimes can have levels of pollutants that are actually higher than levels found outside sources. Some of the key pollutant categories include:

Excessive concentrations of bacteria, viruses, fungi (including molds), dust mite allergen, animal dander and pollen may result from inadequate maintenance and housekeeping, water spills, inadequate humidity control, condensation, or may be brought into the building by occupants, infiltration, or ventilation air. Allergic responses to indoor biological pollutant exposures cause symptoms in allergic individuals and also play a key role in triggering asthma.

Sources of chemical pollutants include tobacco smoke, emissions from products used in the building (e.g., office equipment; furniture, wall and floor coverings; and cleaning and consumer products) accidental spill of chemicals, and gases such as carbon monoxide and nitrogen dioxide, which are products of combustion.

Particles are solid or liquid substances which are light enough to be suspended in the air, the largest of which may be visible in sunbeams streaming into a room. However, smaller particles that you cannot see are likely to be more harmful to health. Particles of dust, dirt, or other substances may be drawn into the building from outside and can also be produced by activities that occur in buildings, like sanding wood or drywall, printing, copying, operating equipment and smoking.

Features

  • Particulate matter PM 10/PM 2.5 filtration.
  • Easily cleanable Fan Electronically Commutated (EC) Motor for low energy consumption.
  • Filter choking Indicator/alarm
  • Air Filtration With activated carbon filters
  • Vertical Unit for less Fl oor space and ceiling mounted units
  • Acoustically insulated silent units for offices, hospitals and educational institutes
  • Fresh air recirculation provision for data centres and OT's

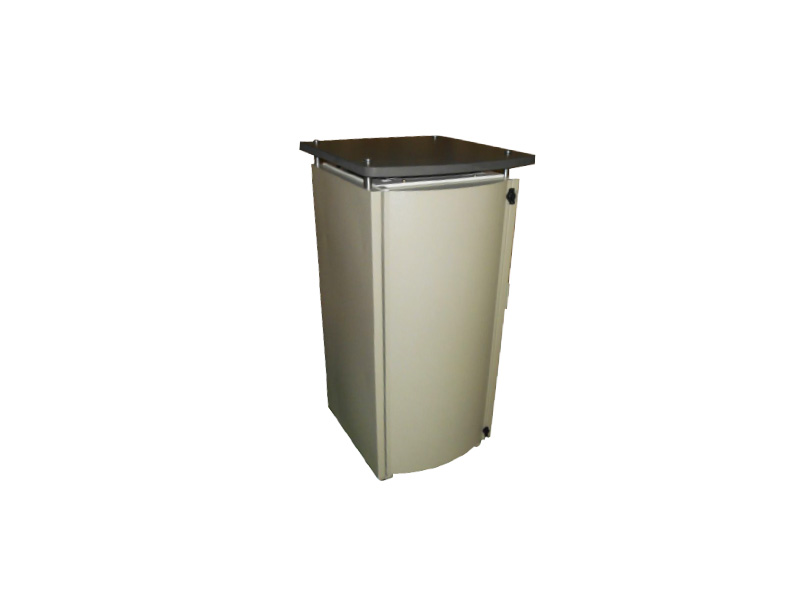

  • Economical stand alone table top, decorative unit for home, small offices and show rooms

Optional Features:

  • Chemical filters to remove SOx and NOx Gases
  • UVC Germicidal lamps to address microbial growth
  • Electronic controls with facility of On -off timer, scheduler,run time calculator. It can be operated by Mobile /pc through RF.

Best Suitable For

Treated Fresh Air Units for commercial and Industrial buildings , Electronic/data /server area, Hospitals- IVF, MRI, CT Scan rooms mortuary , anatomy rooms etc., Petrochemical refineries control rooms DSC/SCADA rooms, Airports, Hotels, restaurants, bars ,discotheques, Multiplexes- projector rooms, Homes and smart homes

AQI Category, Pollutants and Health Breakpoints
AQI Category (Range) PM10 (24hr) PM2.5 (24hr) NO2 (24hr) O3 (8hr) CO (8hr) SO2 (24hr) NH3 (24hr) Pb (24hr
Good (0–50) 0–50 0–30 0–40 0–50 0–1.0 0–40 0–200 0–0.5
Satisfactory (51–100) 51–100 31–60 41–80 51–100 1.1–2.0 41–80 201–400 0.5–1.0
Moderately polluted (101–200) 101–250 61–90 81–180 101–168 2.1–10 81–380 401–800 1.1–2.0
Poor (201–300) 251–350 91–120 181–280 169–208 10–17 381–800 801–1200 2.1–3.0
Very poor (301–400) 351–430 121–250 281–400 209–748 17–34 801–1600 1200–1800 3.1–3.5
Severe (401–500) 430+ 250+ 400+ 748+ 34+ 1600+ 1800+ 3.5+

our Products

Our commitment to our customers is that we will provide solutions and recommendations that benefit the equipment user and not the equipment manufacturer.

Air handling Unites for Clean Rooms

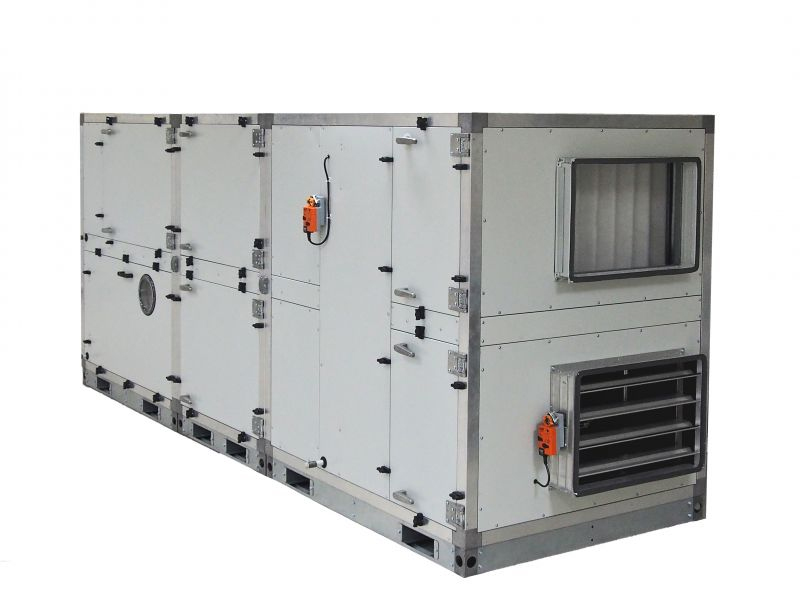

Air Handling Units For Clean Rooms
